Complete Air Disc Brake Coverage
![](/web/image/3315204-d83c0da6/unnamed%20%2811%29.png?access_token=aabeeb40-185e-44b5-924e-b83758d8bec3)

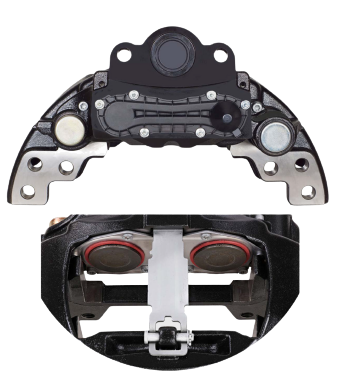

Bendix ADB22X:
The adjuster cover is cone-shaped, offset from the center
Non-metallic cover with 6 bolts
The manual adjuster centered on the caliper
Pad retainer held with pin and clip
FMSI D1369
![](/web/image/3315202-26f58b91/unnamed%20%2812%29.png?access_token=4df71a67-1a11-45be-b73e-d3b255eef29b)

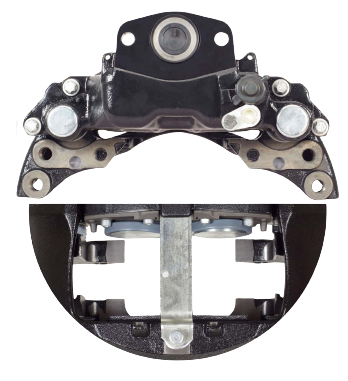

Meritor EX:
Adjuster cap:
Early production- nipple-shaped
Late production- plug with a round head
Two-piece caliper body
Four retention bolts
Pad retainer held with bar and 17mm hex-head bolt
FMSI D1311.
![](/web/image/3315203-e61ab893/unnamed%20%2813%29.png?access_token=6d127523-340e-4ab9-9204-02f298ce969f)

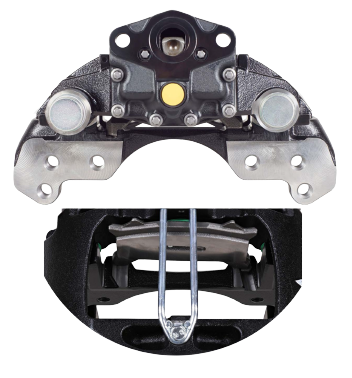

Wabco Pan:
The adjuster cover is a flat plug
Cast cover with retaining bolts
The manual adjuster centered on the caliper
Pad retainer "tuning fork" type with 17mm hex-head bolt
FMSI
(17)- D1518
(19)- D1438
(22)- D1777
![](/web/image/3315201-7cf13a2e/unnamed%20%2814%29.png?access_token=94c99b85-6b0c-42a9-8b9f-8fe4977ffbbf)

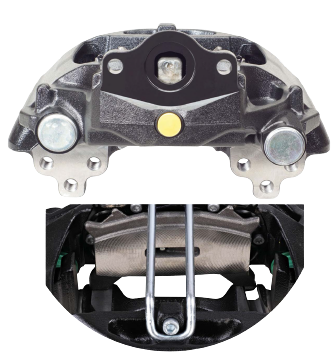

Wabco MAXXUS:
Hendrickson:
The adjuster cover is a flat plug
The adjuster plug may be at the center or offset from center
Cast cover, no retaining bolts
Pad retainer: "tuning fork" type with 8mm internal hex-head bolt
FMSI D1777
